Great speed and processing in your desktop. Enjoy!
The 9550 is based on Agena core, and it requires Socket AM2 / Socket AM2+
Type CPU / Microprocessor
Market segment Desktop
Family AMD Phenom X4
Model number ? 9550
CPU part numbers

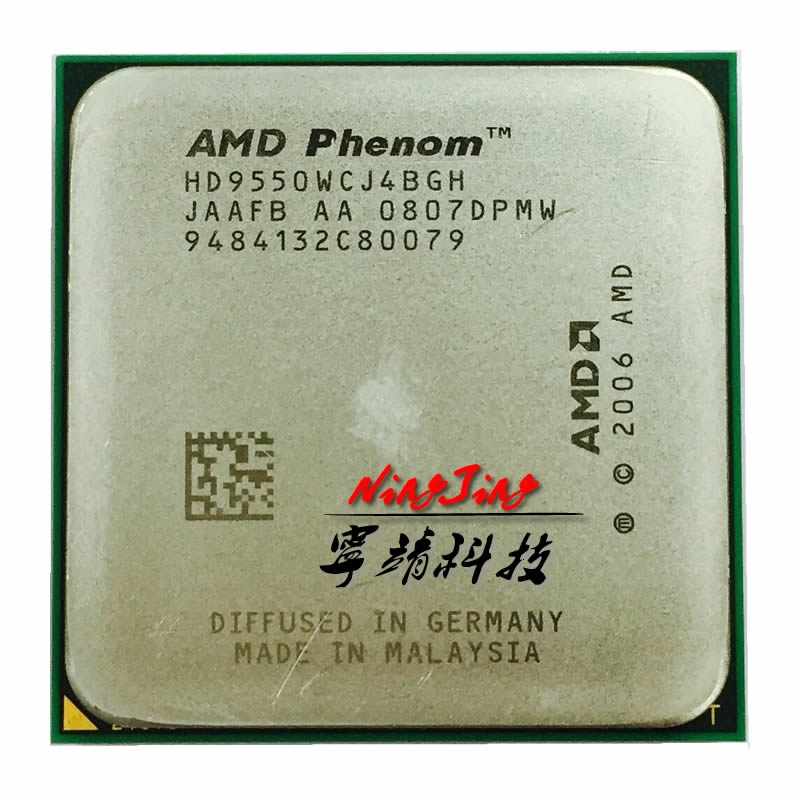

HD9550WCJ4BGH is an OEM/tray microprocessor
HD9550WCGHBOX is a boxed microprocessor with fan and heatsink
Stepping codes JAAFB AA JAAHB AA
Frequency ? 2200 MHz
Bus speed ? One 1800 MHz 16-bit HyperTransport link (3.6 GT/s)
Clock multiplier ? 11
Package 940-pin organic micro-PGA
Sockets Socket AM2
Socket AM2+
Architecture / Microarchitecture
Microarchitecture K10
Platform Cartwheel (mainstream platform with AMD 780G chipset)
Spider (performance platform with AMD 790FX/790GX chipsets)
Processor core ? Agena
Core stepping ? DR-B3
CPUID 100F23
Manufacturing process 0.065 micron silicon-on-insulator (SOI) technology
450 million transistors
Die 285mm2
Data width 64 bit
The number of CPU cores 4
The number of threads 4
Floating Point Unit Integrated
Level 1 cache size ? 4 x 64 KB 2-way set associative instruction caches
4 x 64 KB 2-way set associative data caches
Level 2 cache size ? 4 x 512 KB 16-way set associative caches
Level 3 cache size 2 MB 32-way set associative shared cache
Multiprocessing Uniprocessor
Extensions and Technologies
MMX instructions
Extensions to MMX
3DNow! technology
Extensions to 3DNow!
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSE4a ?
AMD64 / AMD 64-bit technology ?
EVP / Enhanced Virus Protection ?
AMD-V / AMD Virtualization technology
Low power features
Cool'n'Quiet 2.0
CoolCore technology ?
Independent Dynamic Core Technology ?
Dual Dynamic Power Management ?
Core C1 and C1E states
Package S1, S3, S4 and S5 states
Integrated peripherals / components
Integrated graphics None
Memory controller The number of controllers: 1
Memory channels: 2
Channel width (bits): 72
Supported memory: DDR2-1066
DIMMs per channel: up to 2
Maximum memory bandwidth (GB/s): 17.1
Other peripherals HyperTransport 3.0 technology
Electrical / Thermal parameters
V core ? 1.15V - 1.25V
V NorthBridge 1.25V
Maximum operating temperature ? 55°C - 70°C
Thermal Design Power ? 95 Watt
Supported Motherboard Compatability : Please check your motherboard listed below. Need to match with the processor.
ABIT motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
ABIT A-N68SV Any 14
ABIT A-N78HD Any 11
ABIT A-S78H Any 11
ABIT AN-M2HD Any 19
ABIT AN-M2 Any 18
ABIT AN52V Any 12
ABIT AN68SD Any 13
ABIT AN78GS Any 10
ABIT AN78GV Any 10
ABIT AX78 Any 13
ABIT NF-M2PV Any 10
ASRock motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
ASRock 960GC-GS FX micro-ATX Any
ASRock A770CrossFire ATX Any
ASRock A770DE+ ATX Any
ASRock A770DE ATX Any
ASRock A780FullDisplayPort Any
ASRock A780FullHD micro-ATX Any
ASRock A780GM-LE/128M Any
ASRock A780GM-LE Any
ASRock A780GMH/128M Any
ASRock A780GXE/128M ATX Any
ASRock A780GXH/128M Any
ASRock A780LM-S micro-ATX Any
ASRock A780LM P1.10
ASRock A785GM-LE/128M Any
ASRock A785GM-LE Any
ASRock A785GMH/128M Any
ASRock A785GXH/128M Any
ASRock A790GMH/128M Any
ASRock A790GX/128M ATX Any
ASRock A790GXH/128M Any
ASRock ALiveDual-eSATA2 P1.20
ASRock ALiveN570SLI-eSATA2 ATX P1.10
ASRock ALiveNF5-VSTA R2.0 P2.20
ASRock ALiveNF5-eSATA2+ R3.0 ATX P2.00
ASRock ALiveNF5-eSATA2+ ATX P2.00
ASRock ALiveNF5SLI-1394 ATX P1.40
ASRock ALiveNF6G-GLAN micro-ATX P1.20
ASRock ALiveNF6P-VSTA micro-ATX P1.40
ASRock ALiveNF7G-FullHD R1.0 Any
ASRock ALiveNF7G-FullHD R3.0 Any
ASRock ALiveNF7G-GLAN Any
ASRock ALiveNF7G-HD720p R2.0 P2.20
ASRock ALiveNF7G-HD720p R3.0 P2.20
ASRock ALiveNF7G-HD720p R5.0 P2.20
ASRock ALiveXFire-eSATA2 R3.0 P2.50
ASRock ALiveXFire-eSATA2 P2.50
ASRock AM2NF3-VSTA ATX P2.50
ASRock AOD790GX/128M Any
ASRock K10N750SLI-110dB ATX Any
ASRock K10N750SLI-WiFi ATX Any
ASRock K10N78-1394 ATX Any
ASRock K10N780SLIX3-WiFi ATX Any
ASRock K10N78D ATX Any
ASRock K10N78FullHD-hSLI R2.0 micro-ATX Any
ASRock K10N78FullHD-hSLI R3.0 micro-ATX Any
ASRock K10N78M Pro micro-ATX Any
ASRock K10N78M micro-ATX Any
ASRock K10N78hSLI-1394 ATX Any
ASRock K10N78hSLI-GLAN ATX Any
ASRock K10N78hSLI-WiFi ATX Any
ASRock K10N78 ATX Any
ASRock K10N7SLI ATX Any
ASRock M3A-GLAN ATX Any
ASRock N61P-S micro-ATX Any
ASRock N68-GE micro-ATX Any
ASRock N68-GS UCC micro-ATX Any
ASRock N68-GS micro-ATX Any
ASRock N68-S UCC micro-ATX Any
ASRock N68-S micro-ATX Any
ASRock N68C-GS FX micro-ATX Any
ASRock N68C-GS UCC micro-ATX Any
ASRock N68C-GS4 FX micro-ATX Any
ASRock N68C-S UCC micro-ATX Any
ASRock N68C-SE micro-ATX Any
ASRock N68C-S micro-ATX Any
ASRock N68PV-GS Any
ASRock NF6-GLAN Any
ASUS motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
ASUS CROSSHAIR ATX Any 1103
ASUS Crosshair II Formula ATX Any 0502
ASUS G-SURF365 ATX Any 0602
ASUS M2A-MX micro-ATX Any 0603
ASUS M2A-VM HDMI micro-ATX Any 1705
ASUS M2A-VM micro-ATX Any 1705
ASUS M2A74-AM SE 1.00G 0301
Any 0301
ASUS M2A74-AM micro-ATX 1.01G 0204
ASUS M2N-CM DVI micro-ATX Any 0204
ASUS M2N-E Any 1401
ASUS M2N-MX SE Plus Any 0503
ASUS M2N-SLI Deluxe ATX Any 1502
ASUS M2N-SLI ATX Any 0802
ASUS M2N-VM DVI micro-ATX
micro-ATX Any 0603
ASUS M2N-VM HDMI micro-ATX Any 0603
ASUS M2N-X PLUS Any 0410
ASUS M2N-XE Any 0202
ASUS M2N32 WS Professional ATX Any 1903
ASUS M2N32-SLI Deluxe/Wireless Edition ATX Any 1802
ASUS M2N32-SLI Deluxe Any 1802
ASUS M2N32-SLI Premium VISTA Edition ATX Any 1101
ASUS M2N68 PLUS ATX 2.00G 0203
ASUS M2N68 SE 1.00G 0301
ASUS M2N68-AM PLUS micro-ATX 2.00G 0204
ASUS M2N68-AM SE2 2.00G 0206
ASUS M2N68-AM SE 1.00G 0203
ASUS M2N68-AM micro-ATX 2.00G 0301
ASUS M2N68-CM micro-ATX 2.01G 0319
ASUS M2N68-LA (Narra3-GL8E)
ASUS M2N68-VM micro-ATX 2.01G 0405
ASUS M2N68 ATX 2.01G 0310
ASUS M3A-H/HDMI ATX Any 0306
ASUS M3A32-MVP DELUXE ATX Any 1002
ASUS M3A32-MVP Deluxe/WiFi-AP ATX Any 1002
ASUS M3A76-CM micro-ATX 1.00G 0302
ASUS M3A78 Pro ATX Any 0105
ASUS M3A78-CM micro-ATX Any 0405
ASUS M3A78-EMH HDMI micro-ATX Any 0605
ASUS M3A78-EM micro-ATX Any 0407
ASUS M3A78-VM micro-ATX 1.00G 0306
ASUS M3A78 ATX Any 0703
ASUS M3A79-T Deluxe ATX 1.01G 0302
ASUS M3A ATX Any 0805
ASUS M3N WS ATX Any 0304
ASUS M3N-HD HDMI Any 0901
ASUS M3N-HD/HDMI ATX Any 0901
ASUS M3N-HT DELUXE Any 0702
ASUS M3N-HT Deluxe/HDMI Any 0702
ASUS M3N-HT Deluxe/Mempipe ATX Any 0702
ASUS M3N72-D ATX Any 0102
ASUS M3N72-T Deluxe ATX Any 1102
ASUS M3N78 Pro ATX Any 0203
ASUS M3N78 SE ATX 1.01G 0302
ASUS M3N78-AM micro-ATX 2.00G 0302
ASUS M3N78-CM micro-ATX Any 0301
ASUS M3N78-EM micro-ATX Any 0202
ASUS M3N78-VM micro-ATX Any 0202
ASUS M3N78 ATX Any 0216
ASUS M4A77D ATX Any 0402
ASUS M4A77 ATX 2.00G 0301
ASUS M4A78 PLUS ATX 1.00G 0204
ASUS M4A78 Pro ATX 1.00G 0217
ASUS M4A78-AM micro-ATX 2.01G 0209
ASUS M4A78-E SE ATX Any 0203
ASUS M4A78-EM/1394 micro-ATX Any 0309
ASUS M4A78-EM micro-ATX 1.01G 0312
ASUS M4A78-E ATX Any 0505
ASUS M4A78-HTPC/RC micro-ATX Any 0302
ASUS M4A78-HTPC micro-ATX Any 0302
ASUS M4A78-VM micro-ATX 1.01G 0208
ASUS M4A785-M micro-ATX 1.00G 0304
ASUS M4A785D-M PRO micro-ATX 1.04G 0303
micro-ATX Any 0303
ASUS M4A785G HTPC/RC micro-ATX Any 0401
ASUS M4A785G HTPC micro-ATX Any 0401
ASUS M4A78L-M LE micro-ATX 1.00G 0301
ASUS M4A78L-M micro-ATX 1.00G 0213
ASUS M4A78 ATX 1.02G 0205
ASUS M4A79 Deluxe ATX Any 0901
ASUS M4N72-E ATX Any 0205
ASUS M4N78 Pro ATX 1.01G 0603
ASUS M4N78 SE ATX 1.01G 0207
ASUS M4N78-AM V2 micro-ATX Any 0211
ASUS M4N78-AM micro-ATX 1.02G 0211
ASUS M4N78-VM micro-ATX 1.00G 0203
ASUS M4N78 ATX 1.01G 0206
ASUS M4N82 Deluxe Any 0207
Biostar motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
Biostar A760G M2+ 6.x micro-ATX 6.x
Biostar A780G M2+ SE 6.x micro-ATX 6.x
Biostar A780L 6.x micro-ATX 6.x
Biostar A780L M2L+ 6.x micro-ATX 6.x
Biostar A780LE 6.x micro-ATX 6.x
Biostar A785GE 6.0/6.1/6.2/6.3
Biostar A785GE 6.4 micro-ATX 6.4
Biostar A785GE 6.x
Biostar GF8200E 6.x micro-ATX 6.x
Biostar N68S+ 6.x micro-ATX 6.x
DFI motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
DFI LANPARTY DK 790FX-M2RS Any The latest
DFI LANPARTY DK 790FXB-M2RSH Any Latest BIOS
DFI LANPARTY DK 790FXB-M2RS Any Latest BIOS
The latest
DFI LANPARTY DK 790GX-M2RS Any Latest BIOS
The latest
DFI LANPARTY JR 790GX-M2RS Any Latest BIOS
The latest
DFI LANPARTY UT 790FX-M2R Any Latest BIOS
The latest
ECS motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
ECS A740GM-M(1.0/1.0A, DVI) 1.0/1.0A, DVI 10/03/15
ECS A740GM-M (V1.0) micro-ATX 2010/05/07
micro-ATX V1.0 08/05/23
09/01/07
ECS A740GM-M (V1.0, DVI) V1.0, DVI 09/01/07
ECS A740GM-M (V1.0/1.0A) 2010/05/07
V1.0/1.0A 10/03/15
ECS A740GM-M (V1.0/1.0A, DVI) 2010/05/07
ECS A740GM-M (V1.0A) micro-ATX 2010/05/07
ECS A740GM-M (V7.0) micro-ATX 08/16/2010
micro-ATX V7.0 10/03/15
ECS A740GM-M (V8.0)
V8.0
ECS A740GM-M (V8.0/8.1) micro-ATX 08/16/2010
ECS A770M-A (V1.0) ATX 09/06/17
ATX V1.0 08/01/24
09/06/17
ECS A780GM-A Ultra (V1.0) ATX 04/01/2010
ATX V1.0 09/11/16
ECS A780GM-A (V1.0) ATX V1.0 08/03/07
09/02/02
ECS A780GM-M (V1.0) micro-ATX 04/09/2010
micro-ATX V1.0 09/10/09
ECS A780VM-M2 (V1.0) micro-ATX V1.0 08/04/15
ECS A785GM-A (V1.1) ATX 04/09/2010
ATX V1.1 09/12/02
ECS A785GM-M3 (V1.0) micro-ATX 05/06/2010
micro-ATX V1.0 03/29/2010
ECS A785GM-M5 (V1.0) micro-ATX 03/29/2010
micro-ATX V1.0 03/29/2010
ECS A790GXM-A (V1.0) ATX 07/06/2010
ATX V1.0 09/07/14
ECS GF8100VM-M3 (V1.0) micro-ATX V1.0 08/05/26
ECS GF8200A (V1.0) ATX 05/12/2010
ATX V1.0 08/03/14
10/01/13
ECS GF8200SM-M3 (V1.0) micro-ATX 09/07/29
micro-ATX V1.0 09/07/29
ECS GeForce6100PM-M2 (V2.0) 09/03/06
V2.0 09/03/06
V1.0A
ECS GeForce6100PM-M2 (V3.0) 05/26/2010
V3.0 09/09/08
ECS GeForce6100PM-M2 (V7.0) V7.0 09/10/09
ECS GeForce6100PM-M2 (V7.0/V7.1) 06/04/2010
V7.0/V7.1 09/10/09
ECS GeForce6100PM-M2 (V8.0) 12/16/2010
ECS GeForce7050M-M (V2.0) 09/01/05
V2.0 07/12/24
09/01/05
ECS IC780M-A (V1.0) ATX 04/19/2010
ATX V1.0 09/11/23
ECS IC780M-A (V2.0)
V2.0
ECS IC780M-A (V2.0/V2.0A) ATX 04/19/2010
ECS NFORCE6M-A (V3.0) ATX 09/06/24
ATX V3.0 07/12/14
09/06/24
ECS NFORCE6M-A (V5.0) ATX V5.0 09/08/24
ECS NFORCE9M-A(1.0) 1.0 08/05/22
ECS NFORCE9M-A (V1.0) ATX 09/11/05
ATX V1.0 09/11/05
Foxconn motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
Foxconn 520A-K 1.1 784F1P12
Foxconn 520A 1.1 784F1P12
Foxconn 560A-SE 1.1 769F1P09
Foxconn 560A 1.1 769F1P09
Foxconn 720AL 1.1 931F1P07
Foxconn 720AX-K 1.0 796F1P05
Foxconn 720AX 1.0 796F1P05
Foxconn 720A 1 795F1P10
1.0 795F1P10
Foxconn 720MX-K 1.0 798F1P07
Foxconn 720MX 1.0 798F1P07
Foxconn A6VMX-K 1.0 772F1P22
Foxconn A6VMX 1.0 772F1P22
Foxconn A74ML-K 1.0 961F1P07
Foxconn A74ML 1.0 961F1P05
Foxconn A74MX-K 1 813F1P08
1.0 813F1P08
Foxconn A74MX-S 1 813F1P08
1.0 813F1P05
Foxconn A76ML-K 1.0 873F1P06
Foxconn A76ML 1.0 873F1P06
Foxconn A78AX-K 1.0 79BF1P18
Foxconn A78AX-S 1.0 79BF1P19
Foxconn A79A-S 1.1 782F1P08
Foxconn A7DA-S 1.1 81BF1P09
Foxconn A7DA 1.1 81BF1P09
Foxconn A7GM-S 2.0 1.0 872F1P06
Foxconn A7GM-S 1.0 799F1P15
Foxconn A7GMP-S 1.0 871F1P06
Foxconn A7GMX-K 1.1 79AF1P13
Foxconn A7GMX-S 1.1 79AF1P13
Foxconn A7VA-S 1.0 848F1P06
Foxconn A7VA 1.0 848F1P06
Foxconn A7VML-K 1.0 873F1P06
Foxconn A7VML 1.0 873F1P06
Foxconn A7VMX-K 1.1 79AF1P13
Foxconn A7VMX-S 1.1 79AF1P13
Foxconn A85GM 1.0 933F1P05
Foxconn A88GML-K 1.0 AC2F1010
Foxconn Cinema Deluxe 1.0 912F1P06
Foxconn Cinema Premium 1.0 912F1P06
Foxconn Destroyer 1 79CF1P14
1.0 79CF1P16
Foxconn M61PMV 1.0 846F1P08
Foxconn M61PMX 1.6 82AF1P06
Gigabyte motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
Gigabyte GA-M52L-S3 (rev 1.x) 1.x F7
Gigabyte GA-M52L-S3 (rev 2.0) 2.0 F7
Gigabyte GA-M52L-S3P (rev 1.0) ATX 1.0 F1
Gigabyte GA-M52L-S3P (rev 1.2) ATX 1.2 F5
Gigabyte GA-M52L-S3P (rev 2.0) ATX 2.0 FA
Gigabyte GA-M52L-S3P (rev 2.3) ATX 2.3 F1
Gigabyte GA-M52L-S3P (rev 2.4) ATX 2.4 F1
Gigabyte GA-M52S-S3P (rev 1.0) 1.0 F4D
F4F
Gigabyte GA-M55S-S3 (rev 1.0) 1.0 F13B
Gigabyte GA-M55S-S3 (rev 1.1) 1.1 F13B
Gigabyte GA-M55S-S3 (rev 2.0) 2.0 FJI
Gigabyte GA-M56S-S3 (rev 1.x) 1.x F4
Gigabyte GA-M56S-S3 1.0 F4E
Gigabyte GA-M57SLI-DS4 (rev 2.0) 2.0 FI
Gigabyte GA-M57SLI-S4 (rev 1.0) 1.0 F14
Gigabyte GA-M57SLI-S4 (rev 1.1) 1.1 F14
Gigabyte GA-M57SLI-S4 (rev 2.0) 2.0 FG
Gigabyte GA-M61P-S3 (rev 1.0) 1.0 F7F
F7I
Gigabyte GA-M61PME-S2 (rev 2.0) 2.0 F2
Gigabyte GA-M61PME-S2 (rev 2.x) 2.x F2
Gigabyte GA-M61PME-S2P (rev 1.0) 1.0 F2
Gigabyte GA-M61PME-S2P (rev 1.3) 1.3 F6
Gigabyte GA-M61SME-S2 (rev 2.x) micro-ATX 2.x F9
Gigabyte GA-M61SME-S2L (rev 2.0) 2.0 F5J
Gigabyte GA-M68M-S2 (rev 1.0) micro-ATX 1.0 F1
Gigabyte GA-M68M-S2P (rev 1.0) micro-ATX 1.0 F1
Gigabyte GA-M68M-S2P (rev 2.3) micro-ATX 2.3 FA
Gigabyte GA-M68SM-S2L (rev 1.0) micro-ATX 1.0 F6
Gigabyte GA-M720-ES3 (rev 1.0) ATX 1.0 F1
Gigabyte GA-M720-ES3(rev.1.1) ATX 1.1 F1
Gigabyte GA-M720-US3 (rev 1.0) ATX 1.0 F2
Gigabyte GA-M720-US3 (rev 1.1) ATX 1.1 F3
Gigabyte GA-M750SLI-DS4 (rev 1.0) 1.0 F5
Gigabyte GA-M78SM-S2H (rev 1.0) 1.0 F1
Gigabyte GA-M85M-US2H (rev 1.0) micro-ATX 1.0 F3
Gigabyte GA-M85M-US2H (rev 1.1) micro-ATX 1.1 F3
Gigabyte GA-M85M-US2H (rev 1.2) micro-ATX 1.0 F3
Gigabyte GA-M85M-US2H (rev 1.3) micro-ATX 1.3 F10
F8
Gigabyte GA-MA69G-S3H (rev 1.0) 1.0 F6
Gigabyte GA-MA69GM-S2H (rev 1.0) 1.0 F5
Gigabyte GA-MA69VM-S2 (rev 1.0) 1.0 F8
Gigabyte GA-MA74GM-S2 (rev 1.0) 1.0 F2A
Gigabyte GA-MA74GM-S2 (rev 1.x) micro-ATX 1.x F2
Gigabyte GA-MA74GM-S2 (rev 2.0) micro-ATX 2.0 FA
Gigabyte GA-MA74GM-S2 (rev 3.0) micro-ATX 3.0 F1
Gigabyte GA-MA74GM-S2 (rev 4.0) micro-ATX 4.0 FA
Gigabyte GA-MA74GM-S2 (rev 4.1) micro-ATX 4.1 FB
Gigabyte GA-MA74GM-S2 (rev 4.3) micro-ATX 4.3 FB
Gigabyte GA-MA74GM-S2 (rev 4.4) micro-ATX 4.4 FH
Gigabyte GA-MA74GM-S2H (rev 1.0) 1.0 F2C
Gigabyte GA-MA74GM-S2H (rev 1.x) micro-ATX 1.x F2
Gigabyte GA-MA74GM-S2H (rev 2.0) micro-ATX 2.0 FA
Gigabyte GA-MA74GM-S2H (rev 3.0) micro-ATX 3.0 FA
Gigabyte GA-MA74GM-S2H (rev 4.0) micro-ATX 4.0 FA
Gigabyte GA-MA74GM-S2H (rev 4.1) micro-ATX 4.1 FB
Gigabyte GA-MA74GM-S2H (rev 4.3) micro-ATX 4.3 FB
Gigabyte GA-MA770-DS3 (rev 1.0) ATX 1.0 F4
Gigabyte GA-MA770-DS3 (rev 2.0) ATX 2.0 FA
Gigabyte GA-MA770-DS3P (rev 2.0) ATX 2.0 F2
Gigabyte GA-MA770-ES3 (rev 1.0) ATX 1.0 F2
Gigabyte GA-MA770-S3 (rev 1.0) ATX 1.0 F3
Gigabyte GA-MA770-S3 (rev 2.0) ATX 2.0 FA
Gigabyte GA-MA770-S3P (rev 2.0) ATX 2.0 F2
Gigabyte GA-MA770-UD3 (rev 1.0) ATX 1.0 F2
Gigabyte GA-MA770-UD3 (rev 2.0) ATX 2.0 FA
Gigabyte GA-MA770-UD3 (rev 2.1) ATX 2.1 FG
Gigabyte GA-MA770-US3 (rev 1.0) ATX 1.0 F1
Gigabyte GA-MA770-US3 (rev 2.0) ATX 2.0 FA
Gigabyte GA-MA770-US3 (rev 2.1) ATX 2.1 FG
Gigabyte GA-MA780G-UD3H (rev .1.0) 1.0 F1
Gigabyte GA-MA785G-UD3H (rev 1.0) ATX 1.0 F3
Gigabyte GA-MA785GM-UD2H (rev 1.0) micro-ATX 1.0 F1
Gigabyte GA-MA785GM-US2H (rev 1.0) micro-ATX 1.0 F1
Gigabyte GA-MA785GM-US2H (rev 1.1) micro-ATX 1.1 F6
Gigabyte GA-MA785GM-US2H (rev 1.3) micro-ATX 1.3 F8
Gigabyte GA-MA785GM-US2H (rev 3.3) micro-ATX 3.3 F8
Gigabyte GA-MA785GPM-UD2H (rev 1.0) micro-ATX 1.0 F3
Gigabyte GA-MA78G-DS3H (rev 1.0) ATX 1.0 F2
Gigabyte GA-MA78G-DS3H (rev 2.0) 1.1 FA
Gigabyte GA-MA78G-DS3H (rev 2.x) ATX 2.x FA
Gigabyte GA-MA78G-DS3HP (rev 2.0) ATX 2.0 F2
Gigabyte GA-MA78GM-DS2H (rev 1.0) micro-ATX 1.0 F1
Gigabyte GA-MA78GM-DS2H (rev 2.0) 1.1 FA
Gigabyte GA-MA78GM-DS2H (rev 2.x) micro-ATX 2.x FA
Gigabyte GA-MA78GM-DS2HP (rev 2.1) micro-ATX 2.1 F1
Gigabyte GA-MA78GM-S2H (rev 2.0) 2.0 FA
Gigabyte GA-MA78GM-S2H (rev 2.x) micro-ATX 2.x FA
Gigabyte GA-MA78GM-S2H(rev.1.0) micro-ATX 1.0 F3
Gigabyte GA-MA78GM-S2H(rev.1.1) micro-ATX 1.1 F3
Gigabyte GA-MA78GM-S2HP (rev 2.0) micro-ATX 2.0 F1
Gigabyte GA-MA78GM-S2HP (rev 2.1) micro-ATX 2.1 F2
Gigabyte GA-MA78GM-UD2H (rev 1.0) micro-ATX 1.0 F1
Gigabyte GA-MA78GM-US2H (rev 1.0) micro-ATX 1.0 F1
Gigabyte GA-MA78GM-US2H (rev 2.0) micro-ATX 2.0 FB
Gigabyte GA-MA78GPM-DS2H (rev 1.0) 1.0 F1
Gigabyte GA-MA78GPM-DS2H (rev 1.x) micro-ATX 1.x F1
Gigabyte GA-MA78GPM-UD2H (rev 1.0) micro-ATX 1.0 F1
Gigabyte GA-MA78LM-S2 (rev 1.0) micro-ATX 1.0 F1
Gigabyte GA-MA78LM-S2 (rev 1.1) micro-ATX 1.1 F4
Gigabyte GA-MA78LM-S2 (rev 1.3) micro-ATX 1.3 F6
Gigabyte GA-MA78LM-S2 (rev 3.x) micro-ATX 3.x F12
Gigabyte GA-MA78LM-S2H (rev 1.0) micro-ATX 1.0 F1
Gigabyte GA-MA78LM-S2H (rev 1.1) micro-ATX 1.1 F4
Gigabyte GA-MA78LM-S2H (rev 1.3) micro-ATX 1.3 F6
Gigabyte GA-MA78LM-S2H (rev rev. 1.3) 1.3 F6
Gigabyte GA-MA790FX-DQ6 (rev 1.0) ATX 1.0 F5
Gigabyte GA-MA790FX-DS5 (rev 1.0) ATX 1.0 F6
Gigabyte GA-MA790FX-UD5P (rev 1.0) ATX 1.0 F1
Gigabyte GA-MA790GP-DS4H (rev 1.0) ATX 1.0 F1
Gigabyte GA-MA790GP-UD3H (rev 1.0) ATX 1.0 F1
Gigabyte GA-MA790GP-UD4H (rev 1.0) ATX 1.0 F2
Gigabyte GA-MA790X-DS4 (rev 1.0) 1.0 F4
Gigabyte GA-MA790X-DS4 (rev 1.x) ATX 1.x F5
Gigabyte GA-MA790X-UD3P (rev 1.0) 1.0 F1
Gigabyte GA-MA790X-UD3P (rev 1.x) 1.0 F1
Gigabyte GA-MA790X-UD4 (rev 1.0) ATX 1.0 F1
Gigabyte GA-MA790X-UD4P (rev 1.0) ATX 1.0 F4
Jetway motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
Jetway BA-100 / KU A03
Jetway BA-100 ATX
Jetway BA-120 ATX
Jetway BA-130 ATX
Jetway BA-200 ATX A01
Jetway BA-201 ATX A01
Jetway BA-230 ATX
Jetway BA-260 ATX
Jetway BA300S A01
Jetway HA03-AM3-LF
Jetway HA03-GT3 ATX
Jetway HA03-ULTRA
Jetway HA03-Ultra / HA03-UltraD
Jetway HA03 ATX A06
Jetway HA04 ATX A04
Jetway HA05 / HA05-GT
Jetway HA05-GT
Jetway HA05
Jetway HA06-GT ATX
Jetway HA06 ATX A03
Jetway HA07 ULTRA
Jetway HA07-Ultra ATX
Jetway HA07 ATX
Jetway HA08 COMBO
Jetway HZ01-LF
Jetway M26GT/4 (MCP61) Over Spec
Jetway M26GTB Over Spec
Jetway M26GTC ATX Over Spec
Jetway M2A693PLUS-DG micro-ATX
Jetway M2A693PLUS-HG A01
Jetway M2A693PLUS-VP micro-ATX A2.1
Jetway M2A694-GDG micro-ATX
Jetway M2A694-GDP micro-ATX
Jetway M2A694-GHG micro-ATX
Jetway M2A694GHG / GDG / GHP A03
Jetway MA3-760GSMD2G micro-ATX A01
Jetway MA3-79GDG / MA3-79GDGD
Jetway MA3-79GDG COMBO
Jetway MA3-79GDG
Jetway NC62K R2.0 Over Spec
Jetway NC62K R3.0 Over Spec
Jetway NC62 Over Spec
Jetway NC81-LF Over Spec
Jetway PA74M2 micro-ATX Over Spec
Jetway PA74M5-LF Over Spec
Jetway PA74M5-SA-LF Over Spec
Jetway PA77GTA-VT ATX
Jetway PA77GTA V05
Jetway PA78GM5-H8-LF
Jetway PA78GM5-LF Over Spec
Jetway PA78GM5R10HUNL
Jetway PA78GT3-DG / HG A06
Jetway PA78GT3-DG micro-ATX
Jetway PA78GT3-HG micro-ATX
Jetway PA78M4 / PA78M5
Jetway PA78M4-H micro-ATX A08
Jetway PA78M4
Jetway PA78M5HD-LF
Jetway PA78VM2 micro-ATX Over Spec
Jetway PA78VM3-H micro-ATX
Jetway PA78VM3
Jetway PA78VM5-LF Over Spec
Jetway PA78VM5R1-H-LF Over Spec
Jetway PN78SM3-HL A01
Jetway PN78VM2 A01
Jetway SY-A780C-GR V2.0
Jetway X-Blue-N78V A01
Jetway XBLUE-77A2/XBLUE-77A2D ATX
Jetway XBLUE-77A2
Jetway XBLUE-77A3/XBLUE-77A3D ATX
Jetway XBLUE-77A3L ATX
Jetway XBLUE-77A3
Jetway XBLUE-78GA3 ATX
Jetway XBLUE-78VA2 ATX
MSI motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
MSI 740GTM-P21 7302vG0.zip
MSI 740GTM-P25 7302vG0.zip
MSI 760GTM-P33 V4.1
MSI 770T-C35 ATX 7388v80.zip
MSI 770T-C45 ATX 7388v80.zip
MSI 785GT-E63 ATX 7551vS0.zip
MSI 785GTM-E45 micro-ATX 7549v80.zip
V8.0
MSI 790FX-GD70 ATX
MSI 790GX-G65 ATX
MSI 790XT-G45 ATX 7388v20.zip
MSI DKA790GX Platinum (MS-7550) ATX 1.1 1.0
1.3
MSI DKA790GX Platinum ATX 7550v14.zip
7550v18.zip
MSI DKA790GX ATX 7550v14.zip
7550v16.zip
MSI K9A2 CF (MS-7388) ATX 7388v14.zip
MSI K9A2 CF-F (MS-7388) 1.0 1.4
MSI K9A2 CF-F v2 (MS-7388) 1.0 1.5
MSI K9A2 Neo-F (MS-7388) 7388v15.zip
1.0 1.5
MSI K9A2 Neo2 (MS-7388 v3.0) ATX 3.0 7.0
MSI K9A2 Neo2 ATX 7388v70.zip
MSI K9A2 Platinum (MS-7376) 7376v14.zip
1.0 1.4
MSI K9A2 Platinum V2 (MS-7376) 7376v14.zip
1.0 1.4
MSI K9A2GM V2 (MS-7302) 7302v10.zip
1.0 1.0
MSI K9A2GM V3 7302v20.zip
MSI K9A2GM-FD / FIH / FIH-S micro-ATX 7501v11.zip
7501v16.zip
MSI K9A2GM-FD/FIH (MS-7501) 1.0 1.2
1.4
MSI K9A2VM-F V2 (MS-7302) 7302v11.zip
1.0 1.2
MSI K9A2VM-FD / FIH (MS-7501) 1.0 1.2
1.4
MSI K9A2VM-FD micro-ATX 7501v11.zip
MSI K9A2VM-FIH micro-ATX 7501v11.zip
MSI K9AG Neo2 (MS-7368) 1.0 2.0G
MSI K9AG Neo2-Digital (MS-7368) 7368v17.zip
1.0 2.0G
MSI K9AGM3-F (MS-7367) 7367v34.zip
1.1 3.4
MSI K9AGM3-FD (MS-7367) 7367v34.zip
1.1 3.4
MSI K9AGM3-FIH (MS-7367) 7367V13.zip
1.1 1.3
MSI K9AGM4-F (MS-7373) 1.1 1.3
MSI K9N Neo V2 (MS-7369) 1.1 3.0K
MSI K9N Neo V3 (MS-7369) 1.1 3.0K
MSI K9N SLI V2 (MS-7390) 7390v11.zip
MSI K9N2 Diamond (MS-7375) 7375v20.zip
1.1 2.0
MSI K9N2 SLI Platinum / K9N2 Zilent (MS-7374) ATX 7374v32.zip
7374v35.zip
ATX 1.2 3.1
MSI K9N2G Neo (MS-7511) 7511v10.zip
1.2 1.0
MSI K9N2GM-F V2 (MS-7509) 7509v10.zip
1.0 1.0
MSI K9N2GM-FD (MS-7508) 7508v10.zip
1.01 1.0
MSI K9N2GM-FIH 7508v31.zip
MSI K9N2V Neo (MS-7511) 7511v20.zip
1.3 2.0
MSI K9N6PGM2-F V2 7309v20.zip
MSI K9N6PGM2-V (MS-7309) 7309v90.zip
1.3 9.0
MSI K9N6PGM2-V2(FOR EUP v2.2) micro-ATX 7309vA0.zip
MSI K9N6PGM2-V2(FOR EUP) micro-ATX 7309v20.zip
7309vA0.zip
MSI K9N6PGM2-V2 7309v20.zip
MSI K9NGM3-FD (MS-7349) 7349vG3.zip
MSI K9NGM3-FIH (MS-7349) 7349v25.zip
1.1 2.4
MSI K9NGM4 (MS-7506) 7506v13.zip
1.0 1.3
MSI K9NGM4 V2 (MS-7506) 7506v33.zip
1.0 3.3
MSI KA780G-M ATX 7551v10.zip
7551v31.zip
MSI KA780GM-M micro-ATX 7552v10.zip
MSI KA780GM2 micro-ATX 7549v30.zip
MSI KA780GM 7552v20.zip
MSI KA780G ATX 7551vG1.zip
MSI KA780VM-D micro-ATX 7549v10.zip
MSI KA780VM micro-ATX 7549v10.zip
MSI KA790GX-M 7551vH1.zip
MSI KA790GX 7551v10.zip
MSI NF520T-C35 v1.1(FOR EUP) ATX 7615v30.zip
MSI NF520T-C35 ATX 7615v10.zip
MSI NF725GTM-P31 micro-ATX 7309vA1.zip
PC CHIPS motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
PC CHIPS A15G (V1.0) V1.0 A15G415
A15G807
PC CHIPS A15G (V1.0A, AMI) V1.0A, AMI 09/08/13
PC CHIPS A15G (V2.0) V2.0 09/09/08
PC CHIPS A17G (V1.0) V1.0 A17G617
Shuttle motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
Shuttle SA76G2 (FA76 V1.X) SA76U10C
Shuttle SA76G2 V2 (V1.0) SA76GSHU.105
Tyan motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
Tyan GT20 B2925-E
Tyan GT20 B2925
Tyan Tomcat n3400B (S2925)
Tyan Tomcat n3400B (S2925-E)
XFX motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
XFX MBA78S8209
XFX MDA72P7509
XFX MIA78S8209
XFX MIA78U8309
ZOTAC motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
ZOTAC GeForce 8100 (GF8100-A-E)
ZOTAC GeForce 8200 (GF8200)
ZOTAC GeForce 8300 (GF8300)
ZOTAC nForce 750a SLI
