Please check your motherboard socket and serial number. Enjoy your wonderful desktop !
[Item Condition]: Used
[Processor Brand]: Intel
[Application]: Desktop
[Socket Type]: LGA 1155

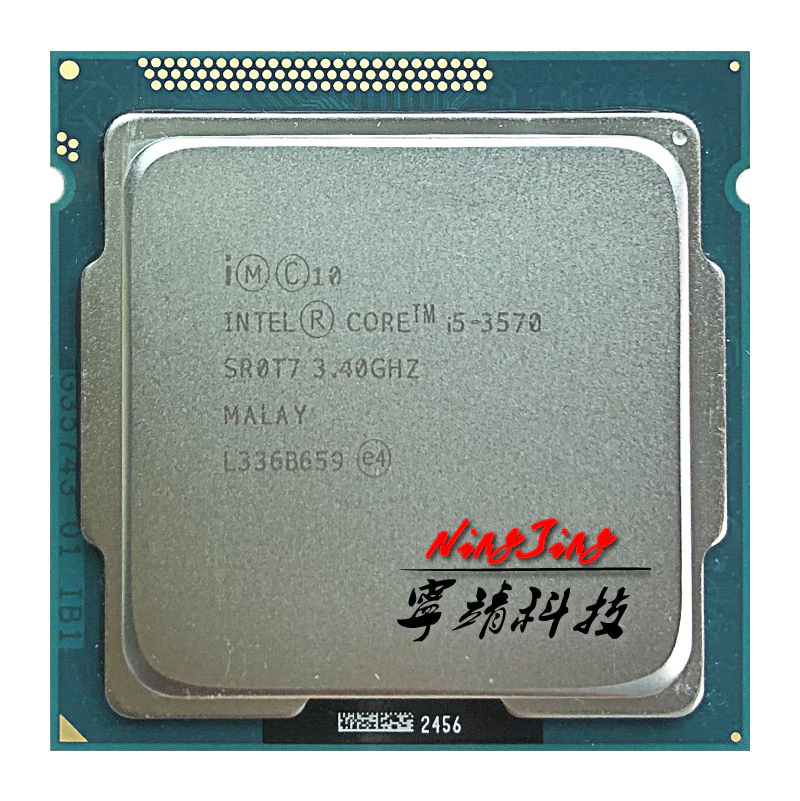

[Model Number]: Intel Core i5-3570
[Type]: Quad-Core
[CPU Frequency]: 3.4 GHz
[Processor Type]: Intel Core
[L2 Cache Capacity]: 1 MB
[L3 Cache Capacity]: 6 MB
[Power]: 77 W
[Package]: No
[Chip Process]: 22 nanometers
[Main Frequency]: 3.4 GHz
[Number of Cores]: Quad-Core
[64-Bit Support]: Yes
[Interface Type]: LGA 1155
[Brand Name]: Intel
[Intel Model]: Intel Core i5-3570
General specs
Release date: 2012
Microarchitecture: Ivy Bridge
Core Name: Ivy Bridge
Manufacturing Process: 0.022 micron
Socket Type: Socket 1155
The Number of Cores: 4
The Number of Threads: 4
Multiprocessing: Not supported
Frequency: 3.4 GHz
Maximum Turbo Frequency: 3.8 GHz
L1 Cache: 128 KB (code)
128 KB (data)
L2 Cache: 1 MB
L3 Cache: 6 MB
Thermal Design Power: 77 Watt
Integrated GPU: HD 2500
Supported memory: DDR3-1333 / DDR3-1600
Instructions and Technologies
Execute Disable Bit? Yes
64-bit Support? Yes
Hyper-Threading technology? No
Turbo Boost? Yes
Virtualization? Yes
Enhanced SpeedStep? Yes
Instruction Set Extensions: AES
AVX
F16C
MMX
SSE
SSE2
SSE3
SSE4
Supplemental SSE3
CPU part numbers
CM8063701093103 is an OEM/tray microprocessor
BX80637I53570 is a boxed processor with fan and heatsink (English version)
BXC80637I53570 is a boxed processor with fan and heatsink (Chinese version)
Frequency ? 3400 MHz
Maximum turbo frequency 3800 MHz (1 or 2 cores)
3700 MHz (3 cores)
3600 MHz (4 cores)
Low power frequency 1600 MHz
Bus speed ? 5 GT/s DMI
Clock multiplier ? 34
Please check your motherboard socket and serial number. This are ths list of compatible with the Intel Core i5-3570 microprocessor, is based on CPU upgrade information from our database.
ASRock motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
ASRock B75 Pro3-M micro-ATX P1.40
ASRock B75 Pro3 ATX P1.30
ASRock B75M R2.0 micro-ATX Any
ASRock B75M-DGS R2.0 micro-ATX P1.10
ASRock B75M-DGS micro-ATX Any
ASRock B75M-GL R2.0 micro-ATX P1.60
ASRock B75M-ITX mini-ITX P1.30
ASRock B75M micro-ATX P1.30
ASRock C216 WS Any
ASRock Fatal1ty P67 Performance ATX P2.10
ASRock Fatal1ty P67 Professional ATX P3.10
ASRock Fatal1ty Z68 Professional Gen3 ATX P2.10
ASRock Fatal1ty Z77 Performance ATX P1.30
ASRock Fatal1ty Z77 Professional-M micro-ATX P1.20
ASRock Fatal1ty Z77 Professional ATX Any
ASRock H61 Pro BTC ATX Any
ASRock H61 Pro ATX P1.00
P1.10
ASRock H61DE/S3 ATX P2.00
ASRock H61DEL ATX P1.90
ASRock H61M-DG3/USB3 micro-ATX Any
ASRock H61M-DG4 micro-ATX Any
ASRock H61M-DGS R2.0 micro-ATX Any
ASRock H61M-DGS micro-ATX P1.60
ASRock H61M-DP3 micro-ATX Any
ASRock H61M-DPS micro-ATX P1.10
ASRock H61M-GE micro-ATX P2.00
ASRock H61M-GS micro-ATX P1.50
ASRock H61M-HG4 micro-ATX Any
ASRock H61M-HGS micro-ATX P2.00
ASRock H61M-HP4 micro-ATX Any
ASRock H61M-HVGS micro-ATX P2.10
ASRock H61M-IDE micro-ATX Any
ASRock H61M-ITX mini-ITX P1.70
ASRock H61M-PS2 micro-ATX P1.40
ASRock H61M-PS4 micro-ATX P1.10
ASRock H61M-PS micro-ATX P1.50
ASRock H61M-S1 PLUS micro-ATX Any
ASRock H61M-S micro-ATX P1.50
ASRock H61M-VG3 micro-ATX Any
P1.50
ASRock H61M-VG4 micro-ATX Any
P1.30
ASRock H61M-VS R2.0 micro-ATX P2.60
ASRock H61M-VS3 micro-ATX P1.20
P1.40
ASRock H61M-VS4 micro-ATX P1.20
P1.30
ASRock H61M-VS micro-ATX P2.60
ASRock H61M/U3S3 micro-ATX P1.70
ASRock H61MV-ITX mini-ITX Any
ASRock H61M micro-ATX P1.70
ASRock H61TM-ITX thin mini-ITX P1.20
ASRock H61iCafe ATX P1.90
ASRock H67DE3 ATX P2.10
ASRock H67M-GE/HT micro-ATX P2.10
ASRock H67M-GE micro-ATX P2.10
ASRock H67M-ITX/HT mini-ITX P2.10
ASRock H67M-ITX mini-ITX P2.10
ASRock H67M micro-ATX P2.10
ASRock H71M-DG3 micro-ATX P1.00
ASRock H71M-DGS micro-ATX P1.50
ASRock H77 Pro4-M micro-ATX P1.30
ASRock H77 Pro4/MVP ATX P1.30
ASRock H77M-ITX mini-ITX P1.50
ASRock H77M micro-ATX P1.20
ASRock H77WS-DL P1.20
ASRock IMB-161-D P1.00
ASRock IMB-161-L P1.00
ASRock IMB-171-D P1.00
ASRock IMB-171-L P1.00
ASRock IMB-370-D Any
ASRock IMB-370-L Any
ASRock IMB-770 P1.30
ASRock P67 Extreme4 Gen3 ATX P2.10
ASRock P67 Extreme4 ATX P3.10
ASRock P67 Extreme6 ATX P2.10
ASRock P67 Pro3 SE ATX P2.10
ASRock P67 Pro3 ATX P3.10
ASRock P67 Pro ATX P2.10
ASRock P75 Pro3 ATX Any
ASRock Q77M vPro micro-ATX Any
ASRock Z68 Extreme3 Gen3 ATX P2.30
ASRock Z68 Extreme4 Gen3 ATX P2.10
ASRock Z68 Extreme4 ATX P2.20
ASRock Z68 Extreme7 Gen3 ATX P2.10
ASRock Z68 Pro3 Gen3 ATX P2.10
ASRock Z68 Pro3-M micro-ATX P2.10
ASRock Z68 Pro3 ATX P2.10
ASRock Z68M-ITX/HT mini-ITX P2.20
ASRock Z68M/USB3 micro-ATX P2.10
ASRock Z75 Pro3 ATX P1.20
ASRock Z77 Extreme11 EATX P1.10
ASRock Z77 Extreme3 ATX Any
ASRock Z77 Extreme4-M micro-ATX P1.10
ASRock Z77 Extreme4 ATX P1.40
ASRock Z77 Extreme6/TB4 ATX P1.10
ASRock Z77 Extreme6 ATX P1.40
ASRock Z77 OC Formula EATX Any
ASRock Z77 Pro3 ATX P1.20
ASRock Z77 Pro4-M micro-ATX P1.10
ASRock Z77 Pro4 ATX P1.10
ASRock Z77 WS P1.20
ASRock Z77E-ITX mini-ITX P1.20
ASRock Z77M micro-ATX P1.10
ASRock ZH77 Pro3 ATX Any
ASUS motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
ASUS B75M-A Any 0212
ASUS B75M-PLUS Any 0209
ASUS H61-PLUS Any 0303
ASUS H61M-A/USB3 Any 0303
ASUS H61M-A Any 0403
ASUS H61M-C Any 0212
ASUS H61M-D Any 0304
ASUS H61M-E Any 0312
ASUS H61M-F Any 0303
ASUS H61M-K Any 0306
ASUS H61M-PLUS Any 0304
ASUS H61M-PRO Any 0302
ASUS MAXIMUS V EXTREME Any 0257
ASUS MAXIMUS V FORMULA GAME BUNDLED EDITION Any 0221
ASUS MAXIMUS V FORMULA/THUNDERFX Any 0221
ASUS MAXIMUS V FORMULA Any 0221
ASUS Maximus IV Extreme-Z Any 3402
ASUS Maximus IV Extreme Any 3028
ASUS Maximus IV GENE-Z/GEN3 Any 3305
ASUS Maximus IV GENE-Z Any 3305
ASUS Maximus V GENE Any 0602
ASUS P8B WS Any 2009
ASUS P8B75-M LE Any 0501
ASUS P8B75-M LX PLUS Any 0308
ASUS P8B75-M LX Any 0405
ASUS P8B75-M/CSM Any 0602
ASUS P8B75-M Any 0602
ASUS P8B75-V Any 0503
ASUS P8C WS Any 0702
ASUS P8H61 EVO Any 4004
ASUS P8H61 PLUS ATX Any 4013
ASUS P8H61 PRO ATX Any 4012
ASUS P8H61 R2.0 Any 0307
ASUS P8H61-I LX Any 3607
ASUS P8H61-M EVO Any 4103
ASUS P8H61-M LE/USB3 Any 4104
ASUS P8H61-M LE micro-ATX Any 4104
ASUS P8H61-M LX PLUS R2.0 Any 0402
ASUS P8H61-M LX PLUS Any 4104
ASUS P8H61-M LX R2.0 Any 0308
ASUS P8H61-M LX3 R2.0 Any 0402
ASUS P8H61-M LX Any 4104
ASUS P8H61-M PLUS V3 Any 0403
ASUS P8H61-M PRO Any 4303
ASUS P8H61-MX R2.0 Any 0401
ASUS P8H61-MX USB3 Any 0401
ASUS P8H61-M micro-ATX Any 4201
ASUS P8H61-V Any 4201
ASUS P8H61/USB3 R2.0 Any 0307
ASUS P8H61/USB3 Any 4013
ASUS P8H61 ATX Any 4013
ASUS P8H67-I PRO Any 0509
ASUS P8H67-M EVO micro-ATX Any 3207
ASUS P8H67-M PRO micro-ATX Any 3802
3806
ASUS P8H67-M micro-ATX Any 3702
ASUS P8H67-V ATX Any 3603
ASUS P8H67 ATX Any 3603
ASUS P8H77-I Any 0409
ASUS P8H77-M LE Any 0604
ASUS P8H77-M PRO Any 0806
ASUS P8H77-M/CSM Any 0514
ASUS P8H77-M Any 0514
ASUS P8H77-V LE Any 0601
ASUS P8H77-V Any 0803
ASUS P8P67 (rev 3.1) Any 3207
ASUS P8P67 DELUXE ATX Any 3207
ASUS P8P67 EVO ATX Any 3207
ASUS P8P67 LE ATX Any 3602
ASUS P8P67 PRO (rev 3.1) Any 3207
ASUS P8P67 PRO ATX Any 3207
ASUS P8P67-M PRO micro-ATX Any 3602
ASUS P8P67-M micro-ATX Any 3602
ASUS P8P67 ATX Any 3207
ASUS P8Q77-M/CSM Any 0303
ASUS P8Q77-M2 Any 0223
ASUS P8Q77-M Any 0303
ASUS P8Z68 DELUXE/GEN3 Any 3304
ASUS P8Z68 DELUXE Any 3304
ASUS P8Z68-M PRO Any 3806
ASUS P8Z68-V LE Any 3808
ASUS P8Z68-V LX Any 3904
ASUS P8Z68-V PRO/GEN3 Any 3402
ASUS P8Z68-V PRO Any 3402
ASUS P8Z68-V/GEN3 Any 3402
ASUS P8Z68-V Any 3402
ASUS P8Z77 WS Any 3007
ASUS P8Z77-I DELUXE/WD Any 0306
ASUS P8Z77-I DELUXE Any 0408
ASUS P8Z77-M PRO Any 1016
ASUS P8Z77-M Any 0906
ASUS P8Z77-V DELUXE Any 1015
ASUS P8Z77-V LE PLUS Any 0404
ASUS P8Z77-V LE Any 0513
ASUS P8Z77-V LK Any 0404
ASUS P8Z77-V LX Any 0610
ASUS P8Z77-V PREMIUM Any 0310
ASUS P8Z77-V PRO/THUNDERBOLT Any 0406
ASUS P8Z77-V PRO Any 1015
ASUS P8Z77-V Any 1015
ASUS SABERTOOTH Z77 Any 1015
ASUS Sabertooth P67 ATX Any 3209
ASUS Z77-A Any 0402
Biostar motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
Biostar B75MU3+ 6.x 6.x
Biostar B75MU3B 6.x 6.x
Biostar H61B 6.1 6.1
Biostar H61MGC 6.6 6.6
Biostar H61MGE 6.x 6.x
Biostar H61MGP 6.x 6.x
Biostar H61MGV 7.x 7.x
Biostar H61MGV3 7.0/7.4 7.0 / 7.4
Biostar H61MGV3 7.1/7.5 7.1 / 7.5
Biostar H61MGV3 7.7 7.7
Biostar H61MGV3 7.x 7.x
Biostar H61MGV3 8.0 8.0
Biostar H61MH 6.x micro-ATX 6.x
Biostar H61MHB 6.x micro-ATX 6.x
Biostar H61MHV 7.5 7.5
Biostar H61MHV 7.x 7.x
Biostar H61ML 6.x micro-ATX 6.x
Biostar H61MLB 6.x micro-ATX 6.x
Biostar H61MLC 6.5 6.5
Biostar H61MLC2 7.4 7.4
Biostar H61MLC2 7.x 7.x
Biostar H61MLV 7.1 7.1
Biostar H61MLV3 7.x 7.x
Biostar H61MLV3 8.0 8.0
Biostar H61MU3 6.x micro-ATX 6.x
Biostar H61MU3B 6.x 6.x
Biostar H67MH 6.x micro-ATX 6.x
Biostar H67MU3 6.x micro-ATX 6.x
Biostar H77MU3 6.x 6.x
Biostar Hi-Fi B75S3E 6.x 6.x
Biostar Hi-Fi H61S3 7.x 7.x
Biostar Hi-Fi H61S3L 7.x 7.x
Biostar Hi-Fi H77S 5.x 5.x
Biostar Hi-Fi P61S2 6.x 6.x
Biostar T77 5.x 5.x
Biostar TH61 6.x micro-ATX 6.x
Biostar TH61 ITX 5.x mini-ITX 5.x
Biostar TH61A 6.x ATX 6.x
Biostar TH61U3+ 6.x micro-ATX 6.x
Biostar TH67+ 6.1 micro-ATX 6.1
Biostar TH67A+ 6.x ATX 6.x
Biostar TH67B 6.x micro-ATX 6.x
Biostar TH67XE 5.2 micro-ATX 5.2
Biostar TP61A 6.x 6.x
Biostar TP67B+ 6.2 ATX 6.2
Biostar TP67XE 5.1/5.2 5.1 / 5.2
Biostar TP67XE 5.1 ATX 5.1
Biostar TP75 6.x 6.x
Biostar TZ68A+ 6.x ATX 6.x
Biostar TZ68K+ 6.x ATX 6.x
Biostar TZ75A 5.x 5.x
Biostar TZ75B 5.x 5.x
Biostar TZ77A 5.x 5.x
Biostar TZ77B 5.x 5.x
Biostar TZ77MXE 5.x 5.x
Biostar TZ77XE3 5.x 5.x
Biostar TZ77XE4 5.x 5.x
ECS motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
ECS B75H2-M2 (V1.0) micro-ATX 05/03/2012
ECS B75H2-M4 (V1.0) 04/22/2013
ECS B75H2-TI (V1.0A) 11/02/2012
ECS H61H-G11 (V1.0) 01/04/2013
ECS H61H-G11 (V2.0) 10/16/2012
ECS H61H-G11 (V7.0) 10/16/2012
ECS H61H-G11 (V7.1) 07/15/2013
ECS H61H2-A (V1.0) ATX 02/21/2012
ECS H61H2-I (V1.1) mini-ITX 08/09/2012
ECS H61H2-I2 (V1.0) mini-ITX 03/03/2012
ECS H61H2-I5 (V1.0) mini-ITX 11/29/2012
ECS H61H2-M (V1.0) micro-ATX 03/05/2012
ECS H61H2-M10 (V1.0) 03/05/2013
ECS H61H2-M12 (V1.0) micro-ATX 02/17/2012
ECS H61H2-M13 (V1.0) micro-ATX 03/05/2012
ECS H61H2-M17 (V1.0) 06/19/2013
ECS H61H2-M17 (V5.0) 01/03/2013
ECS H61H2-M19 (V1.0) 11/21/2012
ECS H61H2-M2 (V1.0) micro-ATX 02/17/2012
ECS H61H2-M2 (V2.0) micro-ATX 02/17/2012
ECS H61H2-M3 (V1.0) micro-ATX 02/17/2012
ECS H61H2-M5 (V1.0) micro-ATX 02/17/2012
ECS H61H2-M6 (V1.0) micro-ATX 03/01/2012
ECS H61H2-M7 (V1.0) micro-ATX 05/08/2012
ECS H61H2-M8 (V1.0) 04/10/2013
ECS H61H2-M9 (V1.0) micro-ATX 03/01/2013
ECS H61H2-MV (V1.0) micro-ATX 09/07/2012
ECS H61H2-MV (V2.0) micro-ATX 11/27/2013
ECS H61H2-MV (V3.0) micro-ATX
ECS H67H2-I (V1.1) mini-ITX 06/26/2012
ECS H67H2-M2 (V1.0) micro-ATX 03/13/2012
ECS H67H2-M3 (V1.0) micro-ATX 03/21/2012
ECS H77H2-M (V1.0) micro-ATX 04/23/2012
ECS H77H2-M3 (V1.0) micro-ATX 04/23/2012
ECS H77H2-M4 (V1.0) micro-ATX 03/22/2012
ECS Q77H2-TI (V1.0A) 10/30/2012
ECS X77H2-A3 (V1.2) 03/05/2012
ECS Z77H2-A2X (V1.0) ATX 04/24/2012
ECS Z77H2-A3 (V1.2) ATX 04/24/2012
ECS Z77H2-A4 (V1.0) 06/27/2012
ECS Z77H2-A4 (V1.1) 06/27/2012
ECS Z77H2-AX (V1.0) ATX 03/27/2012
Foxconn motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
Foxconn B75MX-D 1.0 CA8F1P05
Foxconn B75MX-S 1.0 CA8F1P05
Foxconn B75MX 1.0 CA8F1P05
Foxconn B75M 1.0 BA6F1P07
Foxconn H61AP-S 1.0 C53F1P03
Foxconn H61AP 1.0 C53F1P03
Foxconn H61A 1.0 C32F1P03
Foxconn H61M-S 1.0 C52F1P03
1.1 C52F1P01
Foxconn H61MX EL 1.1 BC1F1P04
Foxconn H61MXE-K 1.0 BB3F1P11
Foxconn H61MXE-S 1.0 BB3F1P11
Foxconn H61MXE-V 1.0 BB3F1P11
Foxconn H61MXE 1.0 BB3F1P11
Foxconn H61MXL-K 1.0 BB5F1P04
Foxconn H61MXL 1.0 BB5F1P04
Foxconn H61MXP 1.0 C36F1P06
Foxconn H61MXV 1.1 C12F1P04
Foxconn H61MX 1.1 BC1F1P04
Foxconn H61S 1.0 C31F1P03_
Foxconn H67A-S 1.0 C3AF1P02
Foxconn H67A 1.0 C3AF1D04
Foxconn H67M-S 1.1 C29F1P03
Foxconn H67M-V 1.1 C29F1P03
Foxconn H67MP-S 1.0 BC5F1P04
Foxconn H67MP-V 1.0 BC5F1P04
Foxconn H67MP 1.0 BC5F1P04
Foxconn H67M 1.1 C29F1P03
Foxconn H77M-S 1.0 B72F1P07
Foxconn H77MXV-D 1.0 BB4F1P07
Foxconn H77MXV 1.0 BB4F1P07
Foxconn H77M 1.0 B72F1P07
Foxconn P67A-S 1.0 C3CF1P01
Foxconn P67A 1.0 C3CF1P01
Foxconn Q77M 1.0 BA2F1P04
Foxconn Rattler 1.0 C3AF1P01
Gigabyte motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
Gigabyte G1.Sniper 2 (rev 1.0) EATX 1.0
Gigabyte G1.Sniper 3 (rev 1.0) EATX 1.0 F4
Gigabyte G1.Sniper M3 (rev 1.0) micro-ATX 1.0 F5
Gigabyte GA-B75-D3V (rev 1.0) ATX 1.0 F7
Gigabyte GA-B75-D3V (rev 1.1) ATX 1.1 F7
Gigabyte GA-B75-D3V (rev 1.2) 1.2 F7
Gigabyte GA-B75-DS3V (rev 1.0) 1.0 F3
Gigabyte GA-B75M-D2P (rev 1.0) 1.0 F1
Gigabyte GA-B75M-D2V (rev 1.0) micro-ATX 1.0 F3
Gigabyte GA-B75M-D3H (rev 1.0) micro-ATX 1.0 F4
Gigabyte GA-B75M-D3H (rev 1.1) micro-ATX 1.1 F4
Gigabyte GA-B75M-D3H (rev 1.2) 1.2 F4
Gigabyte GA-B75M-D3P (rev 1.0) micro-ATX 1.0 F4
Gigabyte GA-B75M-D3P (rev 1.1) 1.1 F4
Gigabyte GA-B75M-D3V (rev 1.0) micro-ATX 1.0 F5
Gigabyte GA-B75M-D3V (rev 1.1) micro-ATX 1.1 F5
Gigabyte GA-B75M-D3V (rev 2.0) 2.0 FB
Gigabyte GA-B75M-HD3 (rev 1.0) micro-ATX 1.0 F3
Gigabyte GA-B75M-S (rev 1.0) 1.0 F1
Gigabyte GA-B75N (rev 1.0) mini-ITX 1.0 F3
Gigabyte GA-B75TN (rev 1.0) mini-ITX 1.0 F1
F2
Gigabyte GA-B75TN (rev 1.1) mini-ITX 1.1 F1
F2
Gigabyte GA-H61-S3 (rev 1.0) ATX 1.0 F5
Gigabyte GA-H61-S3 (rev 2.0) ATX 2.0 FB
Gigabyte GA-H61M-D1 (rev 1.0) 1.0 F1
Gigabyte GA-H61M-D2-B3 (rev 1.0) micro-ATX 1.0
Gigabyte GA-H61M-D2-B3 (rev 1.1) micro-ATX 1.1
Gigabyte GA-H61M-D2H (rev 1.0) micro-ATX 1.0 F4
Gigabyte GA-H61M-D2H (rev 1.2) 1.2 F6
Gigabyte GA-H61M-D2H-USB3 (rev 1.0) micro-ATX 1.0 F4
Gigabyte GA-H61M-D2H-USB3 (rev 1.1) 1.1 F7
Gigabyte GA-H61M-D2H-USB3 (rev 1.2) 1.2 F8
Gigabyte GA-H61M-D2P-B3 (rev 1.0) micro-ATX 1.0 F11
Gigabyte GA-H61M-DS2 DVI (rev 1.0) micro-ATX 1.0 F1
Gigabyte GA-H61M-DS2 HDMI (rev 1.0) micro-ATX 1.0 F2
Gigabyte GA-H61M-DS2 R2 (rev 1.0) 1.0 F1
Gigabyte GA-H61M-DS2 (rev 1.0) micro-ATX 1.0
Gigabyte GA-H61M-DS2 (rev 1.2) micro-ATX 1.2 FD
Gigabyte GA-H61M-DS2 (rev 2.0) micro-ATX 2.0 F7
Gigabyte GA-H61M-DS2 (rev 2.1) micro-ATX 2.1 F7
Gigabyte GA-H61M-DS2 (rev 2.2) micro-ATX 2.2 F7
Gigabyte GA-H61M-DS2 (rev 3.0) micro-ATX 3.0 F1
Gigabyte GA-H61M-DS2 (rev 4.0) 4.0 F6
Gigabyte GA-H61M-DS2 (rev 5.0) 5.0 F6
Gigabyte GA-H61M-DS2H (rev 2.0) micro-ATX 2.0 F4
Gigabyte GA-H61M-DS2H (rev 2.1) micro-ATX 2.1 F4
Gigabyte GA-H61M-DS2V (rev 2.0) micro-ATX 2.0 F2
Gigabyte GA-H61M-DS2V (rev 2.1) micro-ATX 2.1 F2
Gigabyte GA-H61M-HD2 (rev 1.0) micro-ATX 1.0 F2
Gigabyte GA-H61M-S (rev 1.0) 1.0 F2
Gigabyte GA-H61M-S1 (rev 2.0) micro-ATX 2.0 F5
Gigabyte GA-H61M-S1 (rev 2.1) micro-ATX 2.1 F5
Gigabyte GA-H61M-S1 (rev 2.2) micro-ATX 2.2 FC
Gigabyte GA-H61M-S1 (rev 3.0) 3.0 F4
Gigabyte GA-H61M-S1 (rev 4.0) 4.0 F4
Gigabyte GA-H61M-S2-B3 (rev 1.0) micro-ATX 1.0 F5
Gigabyte GA-H61M-S2H (rev 1.2) micro-ATX 1.2 F7
Gigabyte GA-H61M-S2H (rev 1.3) micro-ATX 1.3 F7
Gigabyte GA-H61M-S2P (rev 2.0) micro-ATX 2.0 FD
Gigabyte GA-H61M-S2P (rev 2.1) micro-ATX 2.1 FE
Gigabyte GA-H61M-S2P (rev 3.0) micro-ATX 3.0 F3
Gigabyte GA-H61M-S2P-B3 (rev 1.0) micro-ATX 1.0 F6
Gigabyte GA-H61M-S2P-B3 (rev 1.1) micro-ATX 1.1 F6
Gigabyte GA-H61M-S2P-R3 (rev 3.0) 3.0 F2
Gigabyte GA-H61M-S2PH (rev 1.0) 1.0 F1
Gigabyte GA-H61M-S2PT (rev 1.0) 1.0 F1
Gigabyte GA-H61M-S2PV (rev 1.0) micro-ATX 1.0 F4
Gigabyte GA-H61M-S2PV (rev 2.0) micro-ATX 2.0 FD
Gigabyte GA-H61M-S2PV (rev 2.1) micro-ATX 2.1 FE
Gigabyte GA-H61M-S2PV (rev 2.2) micro-ATX 2.2 FB
Gigabyte GA-H61M-S2PV (rev 2.3) 2.3 FC
Gigabyte GA-H61M-S2V-B3 (rev 1.0) 1.0 F8
Gigabyte GA-H61M-S2V-B3 (rev 1.1) micro-ATX 1.1 F8
Gigabyte GA-H61M-USB3-B3 (rev 1.0) micro-ATX 1.0 F11
Gigabyte GA-H61M-USB3-B3 (rev 1.1) micro-ATX 1.1 F11
Gigabyte GA-H61M-USB3-B3 (rev 2.0) micro-ATX 2.0 FF
Gigabyte GA-H61M-USB3H (rev 1.0) micro-ATX 1.0 F3
Gigabyte GA-H61M-USB3V (rev 1.0) micro-ATX 1.0 F2
Gigabyte GA-H61M-WW (rev 1.0) 1.0 F1
Gigabyte GA-H61MA-D2V (rev 2.0) micro-ATX 2.0 F4
Gigabyte GA-H61MA-D2V (rev 2.1) micro-ATX 2.1 F4
Gigabyte GA-H61MA-D3V (rev 2.0) micro-ATX 2.0 F4
Gigabyte GA-H61MA-D3V (rev 2.1) micro-ATX 2.1 F4
Gigabyte GA-H61N-D2V (rev 1.0) mini-ITX 1.0 F1
Gigabyte GA-H61N-USB3 (rev 1.0) mini-ITX 1.0 F7
Gigabyte GA-H61TN (rev 1.1) mini-ITX 1.1
Gigabyte GA-H67A-D3H-B3 (rev 1.0) ATX 1.0 F7
Gigabyte GA-H67A-UD3H (rev 1.0) ATX 1.0
Gigabyte GA-H67A-UD3H (rev 1.1) ATX 1.1
Gigabyte GA-H67A-UD3H-B3 (rev 1.1) ATX 1.1 F8
Gigabyte GA-H67A-USB3-B3 (rev 1.0) ATX 1.0 F7
Gigabyte GA-H67M-D2 (rev 1.0) micro-ATX 1.0
Gigabyte GA-H67M-D2 (rev 1.1) micro-ATX 1.1
Gigabyte GA-H67M-D2-B3 (rev 1.0) micro-ATX 1.0 F7
Gigabyte GA-H67M-D2-B3 (rev 1.1) micro-ATX 1.1 F7
Gigabyte GA-H67M-UD2H (rev 1.0) micro-ATX 1.0
Gigabyte GA-H67M-UD2H (rev 1.1) micro-ATX 1.1
Gigabyte GA-H67M-UD2H-B3 (rev 1.0) micro-ATX 1.0 F6
Gigabyte GA-H67M-UD2H-B3 (rev 1.1) micro-ATX 1.1 F6
Gigabyte GA-H67MA-D2H (rev 1.0) micro-ATX 1.0
Gigabyte GA-H67MA-D2H (rev 1.1) micro-ATX 1.1
Gigabyte GA-H67MA-D2H-B3 (rev 1.0) micro-ATX 1.0 F6
Gigabyte GA-H67MA-D2H-B3 (rev 1.1) micro-ATX 1.1 F6
Gigabyte GA-H67MA-UD2H (rev 1.0) micro-ATX 1.0
Gigabyte GA-H67MA-UD2H (rev 1.1) micro-ATX 1.1
Gigabyte GA-H67MA-UD2H-B3 (rev 1.1) micro-ATX 1.1 F8
Gigabyte GA-H67MA-USB3-B3 (rev 1.0) micro-ATX 1.0 F8
Gigabyte GA-H67N-USB3-B3 (rev 1.0) mini-ITX 1.0 F9
Gigabyte GA-H77-D3H (rev 1.0) ATX 1.0 F11
Gigabyte GA-H77-D3H (rev 1.1) ATX 1.1 F11
Gigabyte GA-H77-D3H-MVP (rev 1.0) ATX 1.0 F6
Gigabyte GA-H77-D3H-MVP (rev 1.1) ATX 1.1 F6
Gigabyte GA-H77-DS3H (rev 1.0) ATX 1.0 F7
Gigabyte GA-H77-DS3H (rev 1.1) ATX 1.1 F7
Gigabyte GA-H77-DS3H (rev 1.2) 1.2 F7
Gigabyte GA-H77M-D3H (rev 1.0) micro-ATX 1.0 F5
Gigabyte GA-H77M-D3H (rev 1.1) micro-ATX 1.1 F5
Gigabyte GA-H77M-D3H (rev 1.2) 1.2 F5
Gigabyte GA-H77M-HD3 (rev 1.0) 1.0 F1
Gigabyte GA-H77N-WIFI (rev 1.0) mini-ITX 1.0 F2
Gigabyte GA-H77TN (rev 1.0) mini-ITX 1.0 F1
F2
Gigabyte GA-H77TN (rev 1.1) mini-ITX 1.1 F1
F2
Gigabyte GA-HA65M-D2H-B3 (rev 1.0) micro-ATX 1.0 F12
Gigabyte GA-HA65M-D2H-B3 (rev 1.1) micro-ATX 1.1 F12
Gigabyte GA-HA65M-UD3H-B3 (rev 1.0) micro-ATX 1.0
Gigabyte GA-P61-DS3-B3 (rev 1.1) ATX 1.1 F6
Gigabyte GA-P61-S3 (rev 2.0) ATX 2.0 F6
Gigabyte GA-P61-S3-B3 (rev 1.0) ATX 1.0 F7
Gigabyte GA-P61-S3-B3 (rev 1.1) ATX 1.1 FE
Gigabyte GA-P61-S3-B3 (rev 1.2) ATX 1.2 F4
Gigabyte GA-P61-S3P (rev 1.0) ATX 1.0 F5
Gigabyte GA-P61-USB3-B3 (rev 1.0) ATX 1.0 F11
Gigabyte GA-P61-USB3-B3 (rev 1.1) ATX 1.1 F11
Gigabyte GA-P61-USB3P (rev 1.0) ATX 1.0 F4
Gigabyte GA-P61A-D3 (rev 2.0) ATX 2.0 F8
Gigabyte GA-P61A-D3 (rev 3.0) 3.0 FA
Gigabyte GA-P61A-D3 (rev 3.1) 3.1 FB
Gigabyte GA-P67-DS3-B3 (rev 1.0) ATX 1.0 F5
Gigabyte GA-P67-DS3-B3 (rev 2.0) ATX 2.0 FE
Gigabyte GA-P67A-D3-B3 (rev 1.0) ATX 1.0 F7
Gigabyte GA-P67A-D3-B3 (rev 2.0) ATX 2.0 FE
Gigabyte GA-P67A-UD3 (rev 1.0) ATX 1.0
Gigabyte GA-P67A-UD3 (rev 1.1) ATX 1.1
Gigabyte GA-P67A-UD3-B3 (rev 1.x) ATX 1.x F9
Gigabyte GA-P67A-UD3P (rev 1.0) ATX 1.0
Gigabyte GA-P67A-UD3P (rev 1.1) ATX 1.1
Gigabyte GA-P67A-UD3P-B3 (rev 1.1) ATX 1.1 F9
Gigabyte GA-P67A-UD3R (rev 1.0) ATX 1.0
Gigabyte GA-P67A-UD3R (rev 1.1) ATX 1.1
Gigabyte GA-P67A-UD3R-B3 (rev 1.1) ATX 1.1 F9
Gigabyte GA-P67A-UD4 (rev 1.0) ATX 1.0
Gigabyte GA-P67A-UD4 (rev 1.1) ATX 1.1
Gigabyte GA-P67A-UD4-B3 (rev 1.1) ATX 1.1 F8
Gigabyte GA-P67A-UD5 (rev 1.0) ATX 1.0
Gigabyte GA-P67A-UD5-B3 (rev 1.0) ATX 1.0 F8
Gigabyte GA-P67A-UD7 (rev 1.0) ATX 1.0
Gigabyte GA-P67A-UD7-B3 (rev 1.0) ATX 1.0 F7
Gigabyte GA-P67X-UD3-B3 (rev 1.0) ATX 1.0 F9
Gigabyte GA-P67X-UD3R-B3 (rev 1.0) ATX 1.0 F6
Gigabyte GA-P75-D3 (rev 1.0) ATX 1.0 F9
Gigabyte GA-P75-D3 (rev 1.1) ATX 1.1 F9
Gigabyte GA-P75-D3P (rev 1.0) ATX 1.0 F2
Gigabyte GA-PA65-UD3-B3 (rev 1.0) ATX 1.0 F12
Gigabyte GA-PA65-UD3-B3 (rev 1.1) ATX 1.1 F12
Gigabyte GA-PH67-DS3-B3 (rev 1.0) ATX 1.0 F5
Gigabyte GA-PH67-UD3 (rev 1.0) ATX 1.0
Gigabyte GA-PH67-UD3 (rev 1.1) ATX 1.1
Gigabyte GA-PH67-UD3-B3 (rev 1.x) ATX 1.x F8
Gigabyte GA-PH67A-D3-B3 (rev 1.0) ATX 1.0 F6
Gigabyte GA-PH67A-UD3 (rev 1.0) ATX 1.0
Gigabyte GA-PH67A-UD3 (rev 1.1) ATX 1.1
Gigabyte GA-PH67A-UD3-B3 (rev 1.1) ATX 1.1 F9
Gigabyte GA-Q77M-D2H (rev 1.0) micro-ATX 1.0 F1
Gigabyte GA-Z68A-D3-B3 (rev 1.0) ATX 1.0 F11
Gigabyte GA-Z68A-D3H-B3 (rev 1.0) ATX 1.0 F13
Gigabyte GA-Z68A-D3H-B3 (rev 1.3) ATX 1.3 F13
Gigabyte GA-Z68AP-D3 (rev 1.0) ATX 1.0 F8
Gigabyte GA-Z68AP-D3 (rev 2.0) ATX 2.0 FD
Gigabyte GA-Z68M-D2H (rev 1.0) micro-ATX 1.0
Gigabyte GA-Z68MA-D2H-B3 (rev 1.0) micro-ATX 1.0 F10
Gigabyte GA-Z68MA-D2H-B3 (rev 1.3) micro-ATX 1.3 F10
Gigabyte GA-Z68MX-UD2H-B3 (rev 1.0) micro-ATX 1.0 F13
Gigabyte GA-Z68MX-UD2H-B3 (rev 1.3) micro-ATX 1.3 F13
Gigabyte GA-Z68P-DS3 (rev 1.0) ATX 1.0 F9
Gigabyte GA-Z68P-DS3 (rev 2.0) ATX 2.0 FE
Gigabyte GA-Z68P-DS3 (rev 2.1) ATX 2.1 FE
Gigabyte GA-Z68X-UD3-B3 (rev 1.0) ATX 1.0 F13
Gigabyte GA-Z68X-UD3H-B3 (rev 1.0) ATX 1.0 F12
Gigabyte GA-Z68X-UD3H-B3 (rev 1.3) ATX 1.3 F12
Gigabyte GA-Z68X-UD3P-B3 (rev 1.0) ATX 1.0 F8
Gigabyte GA-Z68X-UD3R-B3 (rev 1.0) ATX 1.0 F7
Gigabyte GA-Z68X-UD4-B3 (rev 1.0) ATX 1.0 F10
Gigabyte GA-Z68X-UD5-B3 (rev 1.0) ATX 1.0 F10
Gigabyte GA-Z68X-UD7-B3 (rev 1.0) ATX 1.0 F10
Gigabyte GA-Z68XP-D3 (rev 1.0) ATX 1.0 F9
Gigabyte GA-Z68XP-UD3 (rev 1.0) ATX 1.0 F10
Gigabyte GA-Z68XP-UD3 (rev 1.3) ATX 1.3 F10
Gigabyte GA-Z68XP-UD3-iSSD (rev 1.0) ATX 1.0 F10
Gigabyte GA-Z68XP-UD3P (rev 1.0) ATX 1.0
Gigabyte GA-Z68XP-UD3P (rev 1.3) ATX 1.3
Gigabyte GA-Z68XP-UD3R (rev 1.0) ATX 1.0
Gigabyte GA-Z68XP-UD3R (rev 1.3) ATX 1.3
Gigabyte GA-Z68XP-UD4 (rev 1.0) ATX 1.0
Gigabyte GA-Z68XP-UD4 (rev 1.3) ATX 1.3 F6
Gigabyte GA-Z68XP-UD5 (rev 1.0) ATX 1.0
Gigabyte GA-Z77-D3H (rev 1.0) ATX 1.0 F18
Gigabyte GA-Z77-D3H (rev 1.1) ATX 1.1 F18
Gigabyte GA-Z77-D3H (rev 1.2) 1.2 FA
Gigabyte GA-Z77-DS3H (rev 1.0) ATX 1.0 F8
Gigabyte GA-Z77-DS3H (rev 1.1) ATX 1.1 F8
Gigabyte GA-Z77-HD3 (rev 1.0) ATX 1.0 F1
Gigabyte GA-Z77-HD4 (rev 1.0) ATX 1.0 F1
Gigabyte GA-Z77M-D3H (rev 1.0) micro-ATX 1.0 F6
Gigabyte GA-Z77M-D3H (rev 1.1) micro-ATX 1.1 F9
Gigabyte GA-Z77M-D3H-MVP (rev 1.0) micro-ATX 1.0 F6
Gigabyte GA-Z77M-D3H-MVP (rev 1.1) micro-ATX 1.1 F6
Gigabyte GA-Z77MX-D3H TH (rev 1.0) micro-ATX 1.0 F3
Gigabyte GA-Z77MX-D3H (rev 1.0) micro-ATX 1.0 F10
Gigabyte GA-Z77MX-D3H (rev 1.1) micro-ATX 1.1 F10
Gigabyte GA-Z77N-WIFI (rev 1.0) mini-ITX 1.0 F2
Gigabyte GA-Z77P-D3 (rev 1.0) ATX 1.0 F7
Gigabyte GA-Z77P-D3 (rev 1.1) ATX 1.1 F7
Gigabyte GA-Z77X-D3H (rev 1.0) ATX 1.0 F7
Gigabyte GA-Z77X-D3H (rev 1.1) ATX 1.1 F10
Gigabyte GA-Z77X-D3H (rev 1.2) 1.2 FA
Gigabyte GA-Z77X-UD3H (rev 1.0) ATX 1.0 F8
Gigabyte GA-Z77X-UD3H (rev 1.1) ATX 1.1 F8
Gigabyte GA-Z77X-UD3H (rev 1.2) 1.2 FA
Gigabyte GA-Z77X-UD3H-WB WIFI (rev 1.0) ATX 1.0 F8
Gigabyte GA-Z77X-UD4H (rev 1.0) ATX 1.0 F1
Gigabyte GA-Z77X-UD5H (rev 1.0) ATX 1.0 F6
Gigabyte GA-Z77X-UD5H (rev 1.1) ATX 1.1 F6
Gigabyte GA-Z77X-UD5H (rev 1.x) 1.x F6
Gigabyte GA-Z77X-UD5H-WB WIFI (rev 1.0) ATX 1.0 F6
Gigabyte GA-Z77X-UD5H-WB WIFI (rev 1.1) ATX 1.1 F6
Gigabyte GA-Z77X-UP4 TH (rev 1.0) ATX 1.0 F5
Gigabyte GA-Z77X-UP5 TH (rev 1.0) ATX 1.0 F8
Gigabyte GA-Z77X-UP7 (rev 1.0) EATX 1.0 F3
Intel motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
Intel DB75EN Any 0018
G39650-300, G39650-301, G39650-302, G39650-303, G39650-400 18
Intel DH61BE G14062-206 or later 0042
G14062-206, G14062-207, G14062-208, G14062-209, G14062-210, G14062-211, G14062-212 42
Intel DH61BF Any 0007
G81311-101 7
Intel DH61CR G14064-204 or later 0042
G14064-204, G14064-205, G14064-206, G14064-207, G14064-208, G14064-209, G14064-210 42
Intel DH61SA G38870-302, G44435-302 0042
42
Intel DH61WW G23116-204 or later, G45686-Any 0042
G23116-204, G23116-205, G23116-206, G23116-207, G23116-300, G23116-301, G23116-302, G23116-303, G45686-200, G45686-300 42
Intel DH61ZE Any 0042
G43004-100, G43004-101, G43004-200, G43004-201, G43004-202 42
Intel DH67BL G10189-206 or later 0150
G10189-206 or later, G44434-Any 0150
G10189-206, G10189-207, G10189-208, G10189-209, G10189-210, G10189-211, G10189-212, G10189-213, G44434-200, G44434-201, G44434-202, G44434-203 150
Intel DH67CL G10212-206 or later 0150
G10212-206, G10212-207, G10212-208, G10212-209, G10212-210, G10212-211 150
Intel DH67GD G10206-206 or later 0150
G10206-206, G10206-207, G10206-208, G10206-209, G10206-210, G10206-211 150
Intel DH77DF Any 0069
G40293-100, G40293-200, G40293-300 69
Intel DH77EB Any 0041
G39073-200, G39073-300, G39073-303, G39073-304, G39073-400 41
Intel DH77KC Any 0069
G39641-100, G39641-200, G39641-300, G39641-301, G39641-302, G39641-400 69
Intel DP67BA G10219-301 or later 0077
G10219-301, G10219-302, G10219-303, G10219-304 77
Intel DP67BG Any 2161
G10491-300, G10491-301, G10491-302, G10491-303, G10491-304, G10491-305, G10491-306, G10491-307, G10491-400, G10491-401 2161
Intel DP67DE G10217-301 or later 0077
G10217-301, G10217-302, G10217-303, G10217-304 77
Intel DQ77CP Any 0031
G67261-201, G67261-202, G67261-300 31
Intel DQ77MK Any 0031
G39642-302, G39642-400, G39642-401, G39642-500 31
Intel DZ68BC Any 0035
G30742-400, G30742-401, G30742-402, G30742-403, G30742-404 35
Intel DZ68DB Any 0040
G27985-100, G27985-101, G27985-102, G27985-103, G27985-104, G27985-105, G27985-106 40
G27985-104 or later 0040
Intel DZ68ZV Any 2161
G41861-301, G41861-302 2161
G41861-302 2161
Jetway motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
Jetway BI-820 A01
Jetway HI08 ATX A10
Jetway HI09-Z ATX A06
Jetway HI09 ATX A06
Jetway HI10 ATX A07
Jetway HI12-H77 ATX A04
Jetway HI16-B75 ATX A01
Jetway HI16-H77 A01
Jetway I61G-ITX A06
Jetway I61G1-ITX A01
Jetway I61M2 micro-ATX A08
Jetway I61MG4 micro-ATX A06
Jetway MIH67M-HU3 micro-ATX A09
Jetway MIZ68M-H micro-ATX A06
Jetway NAF92-Q67
Jetway NAF92R-Q67
Jetway NAF93-B75
Jetway NAF93-Q77
Jetway NC9F-H61 A01
Jetway NF9A
Jetway NF9E-Q77 A02
Jetway NF9E
Jetway NF9F-H61 A03
Jetway NF9F
Jetway NMF92-H61
Jetway NMF93-Q77
Jetway TI61AG-A ATX A01
Jetway TI61AG-P ATX A04
Jetway TI61AG3-A ATX A05
Jetway TI61AG3 ATX A06
Jetway TI61AG ATX A07
Jetway TI61M5 micro-ATX A04
Jetway TI61M6 micro-ATX A02
Jetway TI61M8 micro-ATX A01
Jetway TI61MAG A01
Jetway TI61MA micro-ATX A01
Jetway TI61MC
Jetway TI61MG6 micro-ATX A02
Jetway TI61MG7 micro-ATX A01
Jetway TI61MG9 micro-ATX A01
Jetway TI61MG micro-ATX A08
Jetway TIB75MG micro-ATX A01
Jetway TIH77AG A01
Jetway TIH77MG7 micro-ATX A03
Jetway TIZ68MG-L micro-ATX A05
Jetway TIZ68MG3-L micro-ATX A05
Jetway TIZ68MG micro-ATX A04
MSI motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
MSI B75A-E33 7733vA0.zip
MSI B75A-G41 ATX 7758vH1.zip
MSI B75A-G43 GAMING 7758vQ0.zip
MSI B75A-G43 ATX 7759v14.zip
MSI B75IA-E33 7733vH0.zip
MSI B75MA-E31 micro-ATX 7808v30.zip
MSI B75MA-E33 micro-ATX 7808v10.zip
MSI B75MA-G43 micro-ATX 7798vA1.zip
MSI B75MA-P33 7808v10.zip
MSI B75MA-P45 micro-ATX 7798v11.zip
MSI Big Bang-Marshal (B3) XL-ATX 7670v30.zip
MSI H61I-E35 (B3) mini-ITX 7677v60.zip
MSI H61I-E35 V2/W8 mini-ITX 7677v73.zip
MSI H61I-E35/W8 mini-ITX 7677v70.zip
MSI H61M-E22 (G3) 7788vA0.zip
MSI H61M-E22/W8 micro-ATX 7788vI0.zip
MSI H61M-E23 (B3) micro-ATX 7680vC0.zip
MSI H61M-E23 (G3) micro-ATX 7680vC0.zip
MSI H61M-E33 (B3) micro-ATX 7680vC0.zip
MSI H61M-E33 (G3) 7788vH0.zip
MSI H61M-E33/W8 micro-ATX 7788vI0.zip
MSI H61M-G35 (G3) micro-ATX 7788v24.zip
MSI H61M-P20 (G3) micro-ATX 7788v16.zip
MSI H61M-P20/W8 micro-ATX 7788v30.zip
MSI H61M-P21 (B3) micro-ATX 7680vJ0.zip
MSI H61M-P22 (B3) micro-ATX 7680vS0.zip
MSI H61M-P22 (G3) 7788vA0.zip
MSI H61M-P23 (B3) micro-ATX 7680vJ0.zip
MSI H61M-P23 (G3) micro-ATX 7680vI0.zip
MSI H61M-P25 (B3) micro-ATX 7680vS0.zip
MSI H61M-P25 (G3) micro-ATX 7680vQ0.zip
MSI H61M-P31 (G3) micro-ATX 7788v16.zip
MSI H61M-P31/W8 micro-ATX 7788v30.zip
MSI H61M-P32/W8 micro-ATX 7788vA6.zip
MSI H61M-P33 (B3) micro-ATX 7680vC0.zip
MSI H61M-P35 (B3) micro-ATX 7680vS0.zip
MSI H61M-P35 (G3) micro-ATX 7680vQ0.zip
MSI H61MA-E35 (B3) micro-ATX 7740v21.zip
MSI H61MU-E35 (B3) micro-ATX 7680vC0.zip
MSI H67A-G43 (B3) ATX 7750v71.zip
MSI H67MA-E35 (B3) micro-ATX 7680vD0.zip
MSI H67MA-E45 (B3) micro-ATX 7678v30.zip
MSI H67MA-ED55 (B3) micro-ATX 7676v20.zip
MSI H67MA-ED55 micro-ATX 7676v20.zip
MSI H67MS-E23 (B3) micro-ATX 7680vD0.zip
MSI H67MS-E33 (B3) micro-ATX 7680v31.zip
MSI H67MS-E43 (B3) micro-ATX 7678v30.zip
MSI H77MA-G43 micro-ATX 7756v14.zip
MSI P67A-C43 (B3) ATX 7673v51.zip
MSI P67A-C45 (B3) ATX 7673v51.zip
MSI P67A-G43 (B3) ATX 7673v51.zip
MSI P67A-G45 (B3) ATX 7673v51.zip
MSI P67A-GD53 (B3) ATX 7681v42.zip
MSI P67A-GD55 (B3) ATX 7681v42.zip
MSI P67A-GD55 ATX 7681v42.zip
MSI P67A-GD65 (B3) ATX 7681v42.zip
MSI P67A-GD80 (B3) ATX 7672vB0.zip
MSI P67S-C43 (B3) ATX 7673v51.zip
MSI PH61-P33 (B3) ATX 7732v20.zip
MSI PH61A-P35 (B3) ATX 7732v20.zip
MSI PH67A-C43 (B3) ATX 7673v61.zip
MSI PH67S-C43 (B3) ATX 7673v61.zip
MSI Z68A-G43 (B3) ATX 7681vP1.zip
MSI Z68A-G43 (G3) ATX 7750v50.zip
MSI Z68A-G45 (B3) ATX 7750vD0.zip
MSI Z68A-G45 (G3) ATX 7750v50.zip
MSI Z68A-GD55 (B3) ATX 7681vP1.zip
MSI Z68A-GD55 (G3) ATX 7750v71.zip
MSI Z68A-GD65 (B3) ATX 7681vP1.zip
MSI Z68A-GD65 (G3) ATX 7672vJ0.zip
MSI Z68A-GD80 (G3) ATX 7672vJ0.zip
MSI Z68MA-ED55 (B3) micro-ATX 7676vB0.zip
MSI Z68MA-G43 (G3) micro-ATX 7676vU0.zip
MSI Z68MA-G45 (B3) micro-ATX 7676vK0.zip
MSI Z68MA-G45 (G3) micro-ATX 7676vJ0.zip
MSI Z68S-G43 (G3) ATX 7676vJ0.zip
MSI Z77 MPOWER ATX 7752vA1.zip
MSI Z77A-G41 Plus ATX 7758v29.zip
MSI Z77A-G41 ATX 7788vH0.zip
MSI Z77A-G43 GAMING 7758vP0.zip
MSI Z77A-G43 ATX 7756v14.zip
MSI Z77A-G45 GAMING 7752vH0.zip
MSI Z77A-G45 Thunderbolt ATX 7752vA1.zip
MSI Z77A-G45 ATX 7752v23.zip
MSI Z77A-GD55 ATX 7752v23.zip
MSI Z77A-GD65 GAMING 7751vP0.zip
MSI Z77A-GD65 ATX 7751vA5.zip
MSI Z77A-GD80 ATX 7757v10.zip
MSI Z77IA-E51 mini-ITX 7733vM0.zip
MSI Z77IA-E53 mini-ITX 7733vA0.zip
MSI Z77MA-G45 micro-ATX 7758v13.zip
MSI ZH77A-G41 ATX 7758v14.zip
MSI ZH77A-G43 ATX 7758v23.zip
PC CHIPS motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
PC CHIPS P62G (V1.0) V1.0
PC CHIPS P65G (V1.0) V1.0
Sapphire motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
Sapphire PURE Platinum H61 (IPC-CI7S10H61) SIH61053
Sapphire PURE Platinum Z77 (PT-CI7Z77) PTZ7K049
Sapphire PURE Platinum Z77K (PT-CI7Z77K) PTZ7K049
Sapphire Pure Black P67 Hydra (PB-CI7S42P67) SIP67062
Sapphire Pure Platinum H67 (IPC-CI7S10H67) SIH67053
Sapphire Pure Platinum Z68 (PT-CI7S33Z68) PTZ68049
Shuttle motherboards
Motherboard Manuf. and Model Form factor PCB BIOS
Shuttle SH61R4 (FH61 V1.x) SH61R000.201
Shuttle SH67H3 (All) SH67H000.201
Shuttle SZ68R5 (FZ68 V1.x) SZ68R000.201
Shuttle SZ77R5 (FZ77 V1.x) SZ77R000.107
Please see Intel Core i5-3570 page for detailed specifications and chipset compatibility for the CPU.
